Introducing our advanced filling and capping production line, featuring a 12-head piston filling system for precise and accurate dosing. This versatile machine is suitable for various bottle shapes, including round, square, and flat bottles, and can handle both aqueous and viscous materials. The 8-head capping system ensures rapid bottle feeding, automatic cap placement, and secure sealing. Designed for efficiency, this production line enhances productivity and guarantees tight seals, making it perfect for a wide range of industries.

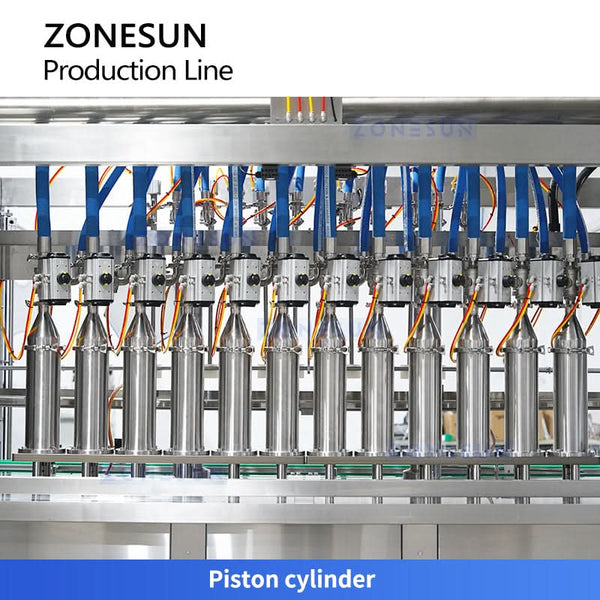

Filling machine:
|
Scope of application |
1000-2500ml watery and viscous non-corrosive liquid |
|
Packaging material size |
Diameter: 60-∅150mm; Height: 250-350mm (special bottle types can be customized) |
|
Filling accuracy |
Below 1kg: -3~+4g 1kg-3kg: -4~+6g (the material has a uniform specific gravity, left to stand for more than 4 hours, and does not contain bubbles) |
|
production capacity |
1000ml≥5000 bottles/hour (dishwashing liquid test) |
|
Voltage/power |
3-phase 380V, AC, 50HZ |
|
Air pressure/air consumption |
≥0.5MPa clean and stable air pressure/≤0.3 cubic/minute |
|
noise |
<78dB |
|
Equipment size (length, width and height) |
L2032mm×W1453mm×H3000mm |
|
weight |
About 2000Kg |
Capping machine:
|
Applicable bottle type |
Customized according to customer needs |
|

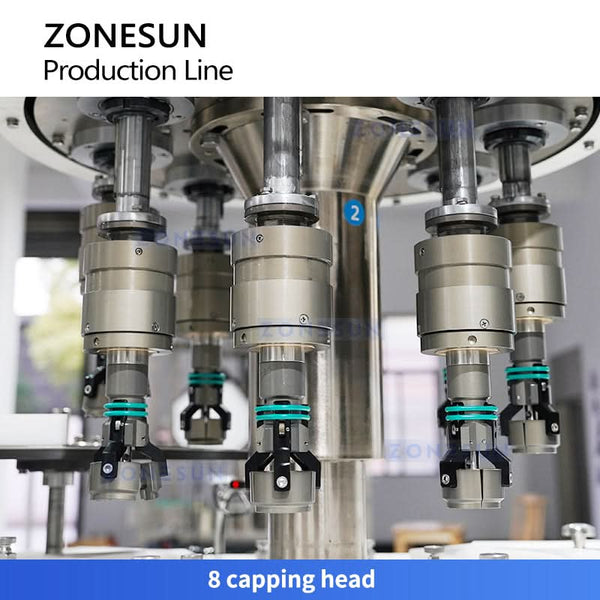

Number of capping heads |
8 heads |
|
Overall dimensions |
2000mm (length)*1800mm (width)*2950mm (height) (for reference) |
|
Host power |
5kw |
|
Host weight |
4000kg |
|
Capping torque control form |
permanent magnet clutch |
|
production capacity |
＞80bpm |
|
Equipped with air source |
0.5Mpa-0.6Mpa clean and stable air source |
|
Equipped with power supply |
400V;50Hz |
quality assurance
We pride ourselves on delivering products of the highest quality. With a rigorous quality assurance process in place, our products meet and exceed industry standards.
