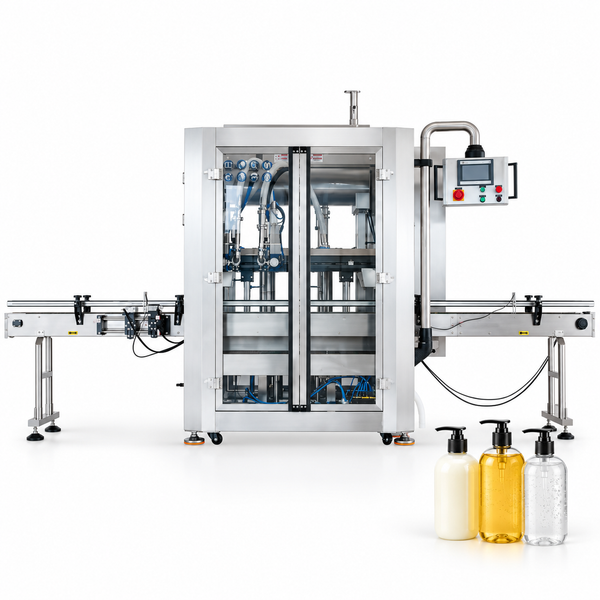

ZONESUN ZS-VTPF2 2 Head Tracking Filling Machine
ZONESUN ZS-VTPF2 2 Head Tracking Filling Machine
ZONESUN ZS-VTPF2 2 Head Tracking Filling Machine
ZONESUN ZS-VTPF2 2 Head Tracking Filling Machine
ZONESUN ZS-VTPF2 2 Head Tracking Filling Machine
ZONESUN ZS-VTPF2 2 Head Tracking Filling Machine
ZONESUN ZS-VTPF2 2 Head Tracking Filling Machine - 110v - 220v - 380
ZONESUN ZS-VTPF2 2 Head Tracking Filling Machine
ZONESUN ZS-VTPF2 2 Head Tracking Filling Machine
ZONESUN ZS-VTPF2 2 Head Tracking Filling Machine
ZONESUN ZS-VTPF2 2 Head Tracking Filling Machine
ZONESUN ZS-VTPF2 2 Head Tracking Filling Machine
ZONESUN ZS-VTPF2 2 Head Tracking Filling Machine
ZONESUN ZS-VTPF2 2 Head Tracking Filling Machine
ZONESUN ZS-VTPF2 2 Head Tracking Filling Machine - 110v - 220v - 380

ZONESUN ZS-VTPF2 2 Head Tracking Filling Machine

$18,799.00
Стоимость доставки рассчитывается при оформлении.
Voltage: 110v
Material: SUS 304
Контакт Руководство по размерам Руководство по размерам

Parameter

Machine Model

ZS-VTPF2

Voltage

380V/220V/110V

Power

8KW

Filling Head

2 Heads(Can be customized)

Filling Head Moving Distance

About 835mm

Filling Range

200-2000ml (Can be customized)

Filling Speed

2400-3600bottles/hour(depend on material and bottle size)

Conveyor Size

113mm*4000mm(W*L)

Filling Nozzle Diameter

OD 21.8mm

Filling Accuracy

±1%

Air Pressure

0.6-0.7Mpa

Air Consumption

6-7m³/min

Machine Material

Stainless Steel

Machine Size

About 4000mm*1290mm*2100mm(L*W*H)

Machine Weight

About 650kg


Feature

[PLC Control Panel] Through the touch screen panel, it's easy to set working parameters. The language of panel can be customized.
[Tracking Heads] The filling heads will move as the bottles move during working, greatly improving efficiency.
[Intelligent Control] When electric eye detects bottles, it will control the machine to fill liquid automatically, saving labor cost.
[Wide Application] It can be used for filling liquid/paste, such as cream, honey, juice, etc. It can work with capping and labeling machine, realizing automated production.



Notice

1. This machine can be customized as needed.

2. This machine will be shipped by sea. Please contact us if you want a faster shipping. Thank you!
