Price
$240,000.00

Please check your cart or click "Buy It Now" to view shipping costs

Shipping Information

Shipping methods and costs vary by machine, package size, destination, and delivery method. Available options may include express delivery, air freight, sea freight, or logistics services.

To view the available shipping options and estimated cost, add the product to your cart and enter your delivery address at checkout.

DDP (Delivered Duty Paid) service may be available for selected destinations. For large machines, customized equipment, or complete production lines, please contact us before ordering so we can confirm the shipping method, packing requirements, freight cost, and estimated delivery time.

For non-DDP shipments, import duties, customs clearance fees, local taxes, and other destination charges may apply.

Voltage:110V Three-phase

DESCRIPTION

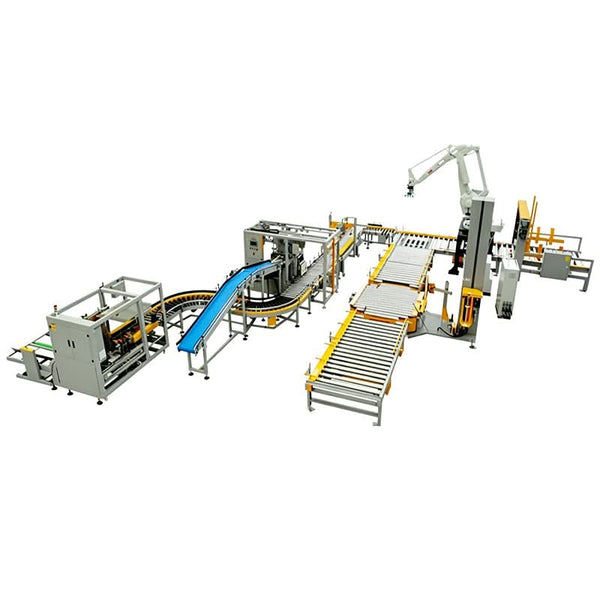

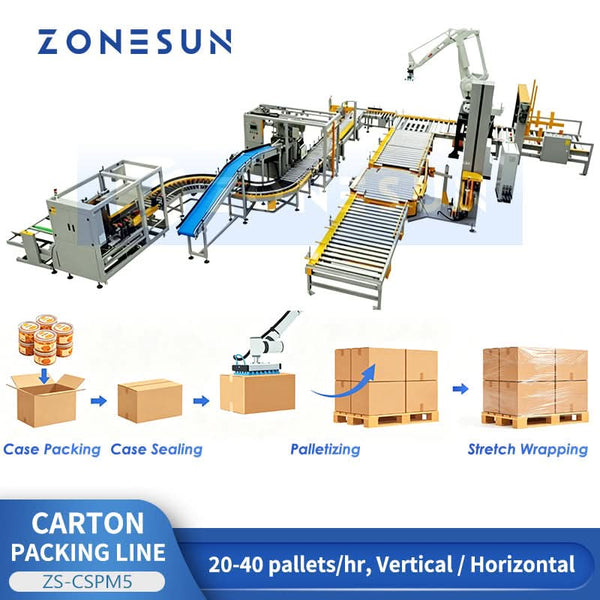

The ZONESUN ZS-CSPM5 is a fully automatic end-of-line carton packaging system that integrates case erecting, product grouping, case sealing, robotic palletizing, and stretch wrapping into one continuous line. Running at up to 20 cartons/min, it delivers stable, efficient, and standardized packaging for food, beverage, pharmaceutical, and daily chemical industries.

PARAMETER

  • Model：ZS-CSPM5
  • Filling Method：Grabbing type
  • Power Supply：Three-phase, 220 V / 380 V, 50/60 Hz, 10 kW
  • Air Pressure：0.5–0.7 MPa
  • Carton Size (L × W × H)：300–600 × 220–500 × 200–400 mm
  • Packaging Speed：≤20 cartons/min
  • Sealing Material：Hotmelt glue / Tape
  • Gripper Quantity / Load Capacity：3 sets or 6 sets / 200 kg
  • Machine Dimensions (L × W × H)：4500 × 1800 × 2000 mm
  • Machine Weight：About 500 kg

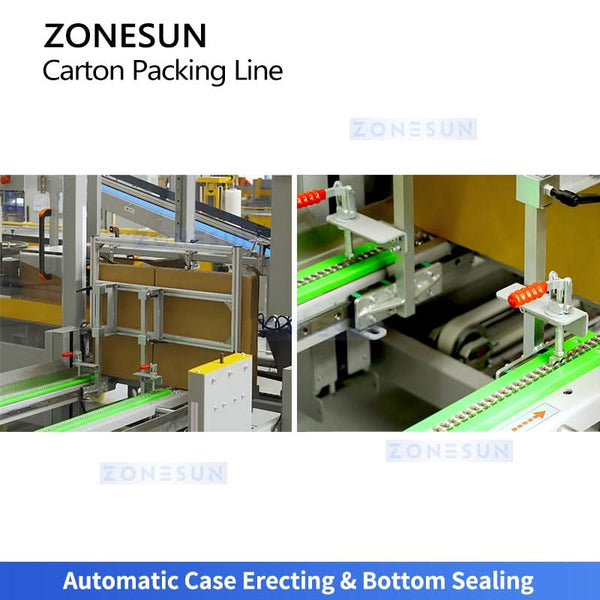

Automatic Case Erecting & Bottom Sealing

Automatically suctions and erects flat cartons, folds the bottom flaps, and seals them with tape, delivering consistently formed empty cases ready for product loading.

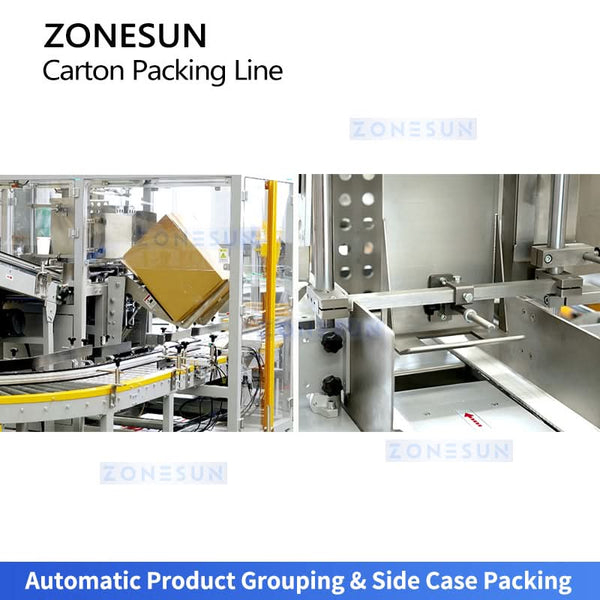

Automatic Product Grouping & Side Case Packing

Automatically arranges, counts, and groups products, then side-pushes the full set smoothly into the carton for efficient packing of regularly shaped bottles, boxes, or bags.

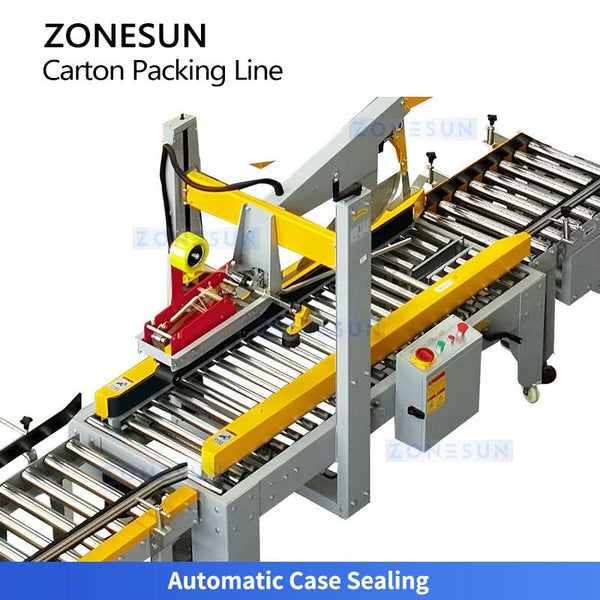

Automatic Case Sealing

Automatically folds the top flaps and seals filled cartons with tape in I-style or H-style patterns, ensuring a firm, secure closure for safer protection during handling and transit.

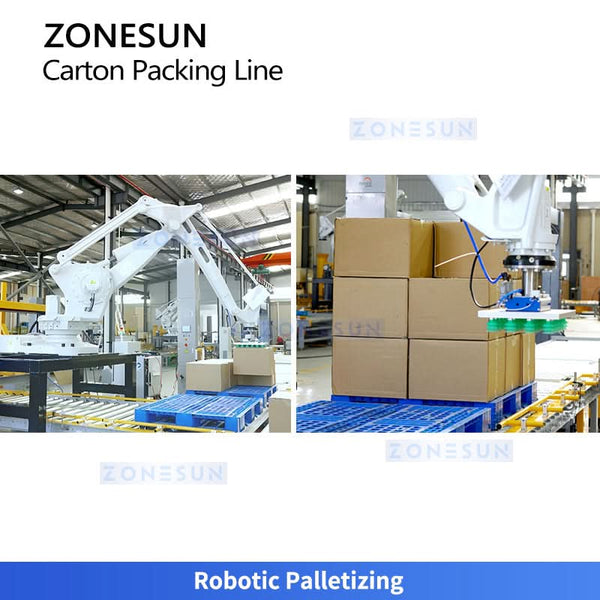

Robotic Palletizing

Stacks finished cartons onto pallets with vacuum suctions or grippers following preset patterns, ensuring accurate placement and maximizing space efficiency.

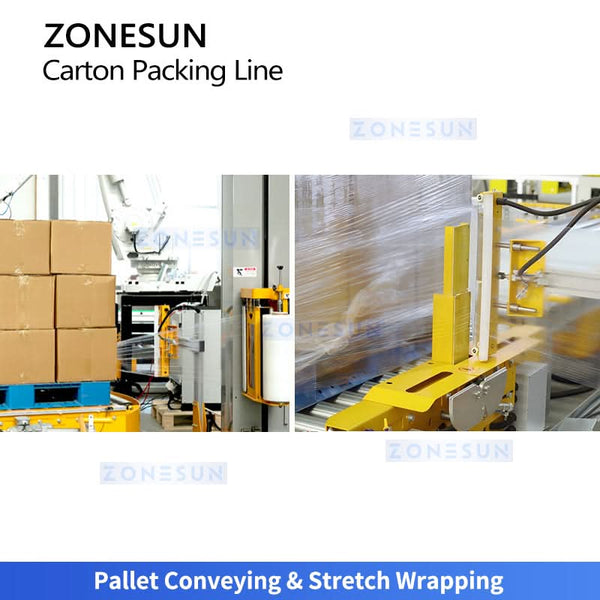

Pallet Conveying & Stretch Wrapping

Automates pallet flow and reinforcement by conveying empty and full pallets and applying multi-layer stretch film for moisture, dust, and collapse protection.



FEATURES

  • 5-in-1 fully automatic end-of-line line — no manual intervention required.
  • High-speed output up to 20 cartons/min for maximum throughput.
  • Grabbing-type packing for precise, damage-free product placement.
  • Wide carton size compatibility to suit diverse product lines.
  • Dual sealing options: hotmelt glue or tape for secure closure.
  • PLC + HMI control for easy operation and quick format changeover.

APPLICATIONS

  • Food & Beverage — bottled drinks, canned goods, snack bags, condiments.
  • Pharmaceutical & Healthcare — medicine boxes, supplement bottles, medical devices.
  • Daily Chemical & Personal Care — detergents, shampoo, cosmetics, household cleaners.
  • Logistics & Warehousing — consistent pallet formation for safe storage and transport.
  • E-commerce Fulfillment — high-volume automated packing to meet dispatch deadlines.
