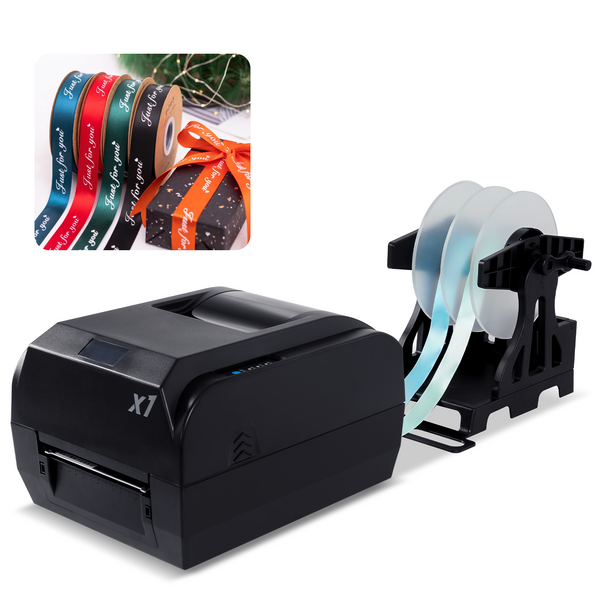

ZONESUN Digital Ribbon Printer 4 Lanes Flower Wrap Ribbon Custom Bows ZS-DMX1

$460.00
Frais d'expédition calculés à l'étape de paiement.
Pre-sale Support Quality Guarantee About Shipping

This printer is used for personalizing satin ribbon. You can edit by common software, such as Bartender and print. It is widely used in gift wrapping, name badges, and decoration.

Specifications







Printing parameters

Print Method

Heat-sensitive / heat-transfer printing printer

Maximum print width

108mm

Maximum speed

150mm/s (203dpi)

Thermal head

Spacing 0.125mm

Resolution ratio

203DPIx203DPI

Figure

graph manipulation

Monochrome PCX, BMP, and equal image data





Printer ribbon

Maximum diameter

68mm (2.68 inch)

Ribbon core size

1 inch (25 mm)

Maximum length

300 m

Width

33~110mm









Medium



Maximum diameter

127mm (5 inch)

Medium core size

25.4 mm (1 inch), 38.1 mm (1.5inch)

Width

25mm ~118mm

Thickness

0.06mm ~0.18mm

Length

8.9mm ~400mm

Media separation

mode

Manual tearing paper, automatic cutting paper,

stripping way

Medium type

Roll type, folding type (continuous paper,

noncontinuous paper, continuous tag, wristband,

ordinary paper or various bills)

Control Panel

Key

One key (paper feed)

Indicator light

Three(power supplyfault, status (paperless /

carbon belt))

Detection function

Standard sensor

Black mark detection, label detection, organization

detection, carbon belt detection

Optional sensor

Label peel-off test

Simulation



TSPL

Power supply

Input

100~240V AC @ 50~60 Hz

Output

24VDC 3A

Memory

SDRAM

32MB

FLASH

8MB

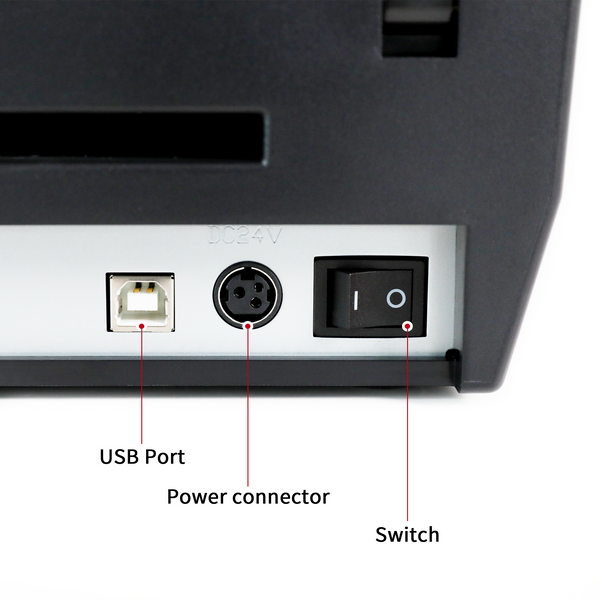

Interface



Standard

USB port2.0 Full Speed)







Optional

RS-232 serial port (DB 25)

Parallel port Centronics (IEEE-1284)

Ethernet:10M/100M

Wi-Fi 802.11b/g)

Bluetooth SPP

Software



Driver:Windows 32bit/64bit

Physical characteristic

Size

230(L ×290(W × 176(Hmm

Color

Black



Weight

About 3kg





Suitable Environment

Operating environment

Temp: 5~40℃

Temp: 20% ~95%RH(no condensation)

Storage environment

Temperature: -20~60℃

Temperature: ≤95%RH(40℃ ,no condensation)



Licensing

certification

Safety Standard

GB 4943.1-2011

EMC)

B Grade

Certification

3C certification, UL, FCC, CE, Energy Star



Optional



Stripper (factory optional, not secondary assembly)

Life time

Heat head

 150KM (calculated by the specified thermal

paper use and printing rate 12.5%)

 Features

 Can provide free barcode professional label software for customers to download

and use, the software is perfectly compatible with the mobile barcode printer,

easily realize the design and printing of various barcode labels under the windows system, is the best solution for barcode label users to improve work efficiency.

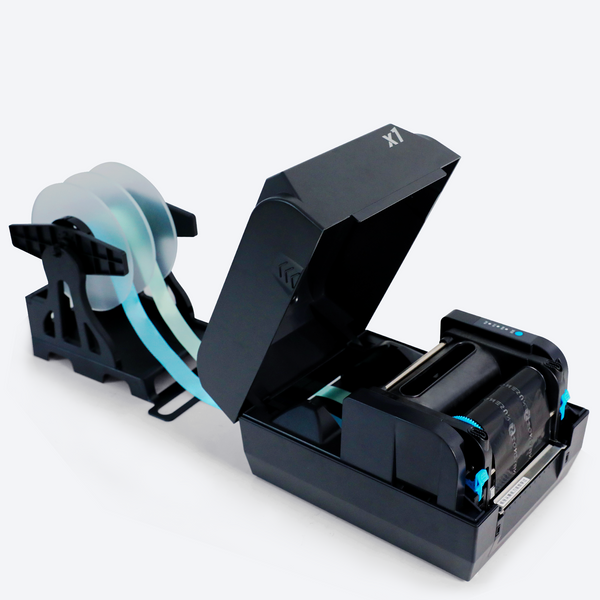

 Open structure design, close to 90 degrees of movement opening, convenient for users to replace the paper roll and carbon belt, simple operation and maintenance.

 The upper and lower tear paper structure design, can correspond to the very narrow label tear paper,respect the user's use habits, more convenient to use.

 Large-capacity paper warehouse design. Support 300 meters large capacity carbon belt and 127mm diameter paper roll, greatly reduce the frequency of users replacing consumables, improve work efficiency.

Movable black mark sensor design, can adapt to different specifications of label accurate positioning, printing effect is excellent.

Multiple interfaces are optional. Standard USB interface, optional parallel port, serial port, Ethernet, wireless network port card,Bluetooth interface card, to meet the needs of different devices.
