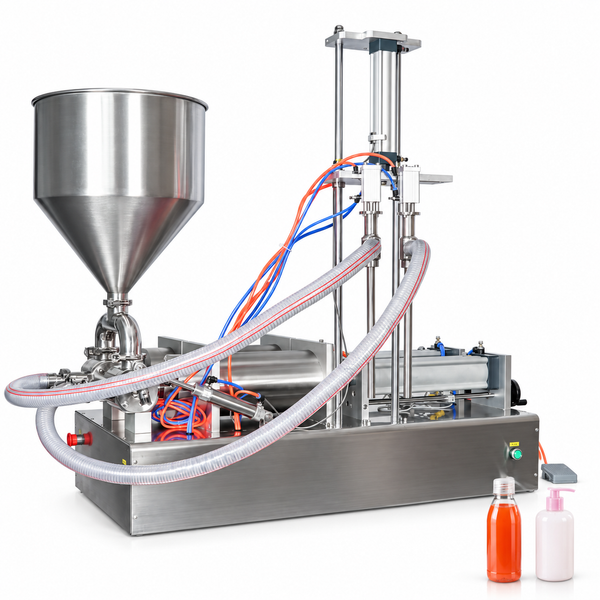

The ZS-GTD2 pneumatic piston filling machine features dual diving nozzles that automatically lift during operation, making it ideal for foamy liquids such as car wash fluid, shampoo, body wash, and hand soap. With adjustable filling speed and volume, it offers precise control for various production needs. Its 30L hopper and stable pneumatic system ensure efficient performance for small to medium-scale manufacturing. Multiple filling ranges are available upon request.
Parameter Specification
Model ZS-GTD2
Filling Range 5–100ml / 10–200ml / 50–500ml / 100–1000ml / 500–2500ml / 1000–5000ml
Power Supply 110V / 220V, 10W
Filling Speed 0–50 bottles/min
Filling Accuracy ±0.5% – ±1%
Hopper Size 30L
Air Pressure 0.4–0.6 MPa
Air Compressor Connector Size Outer Diameter 10 mm
Machine Weight 90.5 kg
Machine Size 111 × 55 × 113 cm
Filling Nozzle Size A ID: 15 mm / OD: 19 mm / Length: 310 mm
Filling Nozzle Size B ID: 18 mm / OD: 20 mm / Length: 41 mm
Note
If you need other filling range (5-100ML/10-200ML/50-500ML/100-1000ML/500-2500ML), please contact us.
