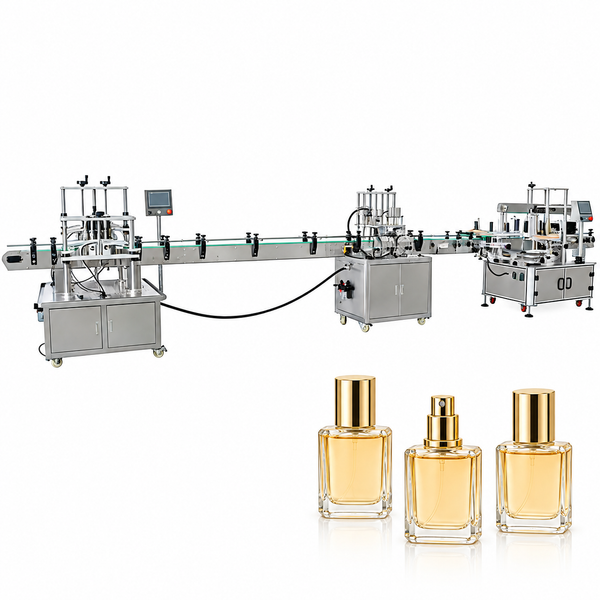

This automated production line integrates liquid filling, bottle capping, and labeling into one streamlined solution, ideal for perfume packaging. Featuring a pneumatic vacuum filling system, it ensures precise liquid level control and avoids spillage. The intelligent sensor system detects bottles for accurate operation, and the PLC touch screen allows intuitive setup with multilingual support. Compatible with round or square perfume bottles, it supports flexible labeling options and is fully customizable to meet diverse production needs.
ZS-YTZL4A Filling Machine Specifications
Parameter Specification
Model ZS-YTZL4A
Filling Head 4 Head
Air Pressure 0.5–0.8MPa
Liquid Level Accuracy ±1mm
Viscosity Range Max 20Cps (static viscosity)
Working Speed 20–40 Bottles/Minute
Bottle Height ≤250mm
Bottle Opening Size ≤φ4.5mm–φ28mm
Adjustable Liquid Level (from Bottle Mouth) ≤27mm
Pumping Rate 5.5L/S
Machine Size Approx. 1500 × 1150 × 1530mm
Package Size Approx. 1660 × 1310 × 1670mm
ZS-YG09 Capping Machine Specifications
Parameter Specification
Machine Model ZS-YG09
Bottle Height 60–200mm
Bottle Opening Size 13 / 15 / 18 / 20mm (customizable)
Bottle Diameter ≤100mm
Cap Diameter Customized
Machine Dimensions Approx. 1345 × 655 × 1460mm
Machine Weight Approx. 151.5kg
Package Dimensions Approx. 1460 × 810 × 1630mm
Package Weight Approx. 193kg
ZS-TB300Z Labeling Machine Specifications
Parameter Specification
Machine Model ZS-TB300Z
Machine Power 110V / 220V, 2500W
Working Speed 30–150 bottles/min (depending on bottle size)
Labeling Accuracy ±1mm
Suitable Labeling Object 30–300mm (L) × 30–100mm (W) × 50–350mm (H)
Suitable Label Size 15–300mm (L) × 15–150mm (W)
Label Roll Outer Diameter Φ280mm
Label Roll Inner Diameter Φ76mm
Machine Dimensions Approx. 2710 × 1450 × 1540mm
Package Dimensions Approx. 1900 × 970 × 1690mm
Net Weight / Gross Weight Approx. 361kg / 410kg
