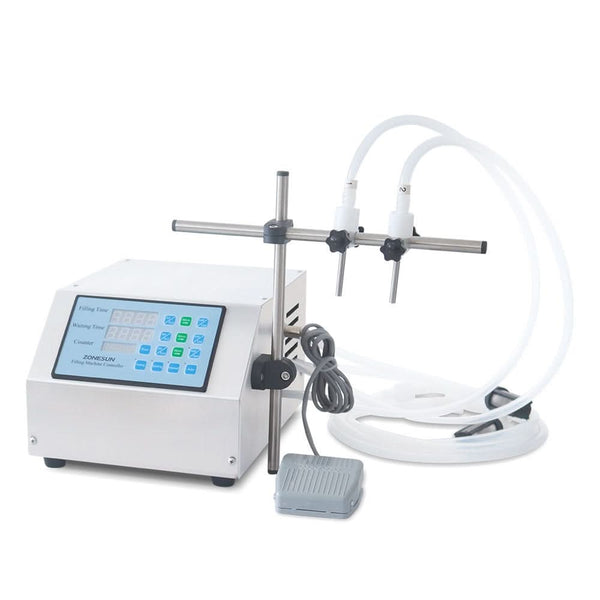

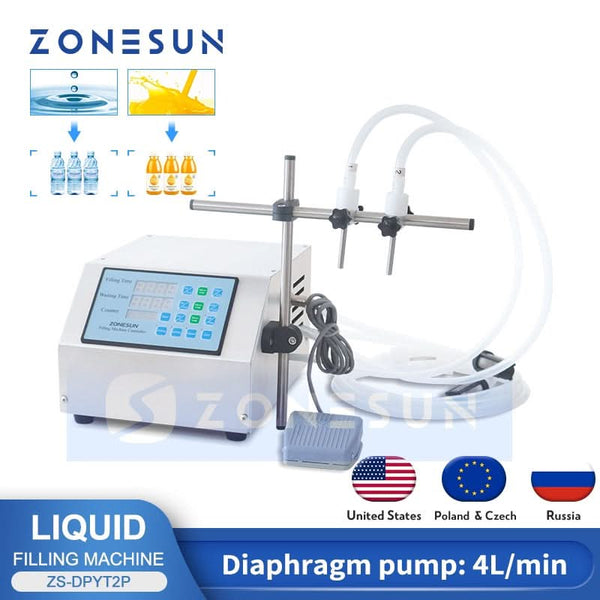

ZS-DPYT2P 50-4000ml Semi Automatic Liquid Bottle Filling Machine Digital Control Filler

$215.83 $149.99 Sale
Shipping calculated at checkout.
Voltage: 110v
Pre-sale Support Quality Guarantee About Shipping

Parameter

Machine Model

ZS-DPYT2P

Voltage

AC 220V/110V   50-60Hz

Power

40W*2

Filling Range

50-4000mL

Maximum Suction Distance

1.5m

Maximum Flow Rate

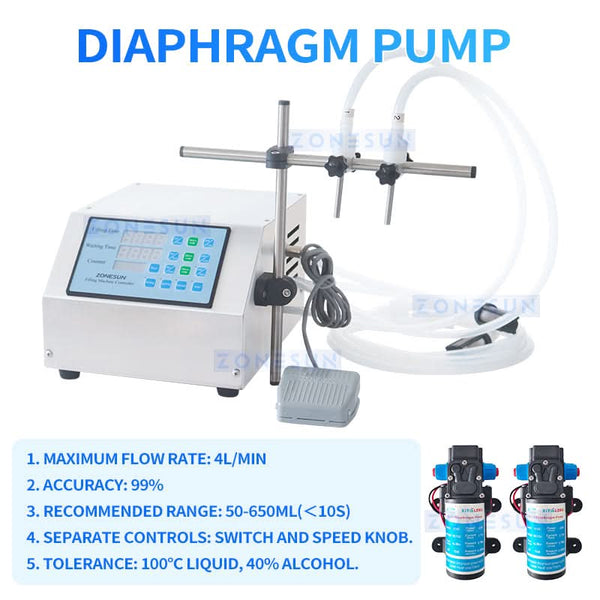

4L/min

Repetitive error smaller than

0.5%(depending on the density of product)

OD of Filling Nozzle

OD 6mm

Machine Weight

5kg

Application

This machine is used for filling liquid, such as beverage, water, perfume,etc. It can be widely used in pharmaceutical, medicine, food, daily chemical industries.

Attention

1. We'll test all of the filling machines before sending out. So it's normal that the pump and tube are with liquid inside when you receive it.

2.This one is not suitable for filling foamy liquid.



ZS-DPYT2P 50-4000ml Semi Automatic Liquid Bottle Filling Machine Digital Control Filler



Applications

  • Suitable for Beverages, wine, vinegar, soy sauce,essence of liquid skin care products, perfume and other liquid products. NOT suitable for corrosive liquids and highly viscous liquids and the liquid thicker than edible oil.Especially suitable for small batch production in medicine, chemical, food, beverage, oil, cosmetics and other industries.

  • Not suitable for disinfectant who contains high concentration of alcohol, over 40%.




ZS-DPYT2P 50-4000ml Semi Automatic Liquid Bottle Filling Machine Digital Control Filler



Questions



  • 1. What kind of liquid to fill with the machine? Is it viscous? Is it corrosive?

  • This machine is suitable for filling LOW-VISCOUS (water-like) with NO solid particles and NON-CORROSIVE LIQUID. (ie. MCT oil based tincture, CBD Oil, essential oil, Water, Juice).If it contains alcohol, its concentration should NOT exceed 40%

  • 2. The liquid volume to be filling each time?

  • The maximum filling amount of this machine is 4L per head, not suitable for very low filling amount, such as 0.5 to 50 ml.If your liquid is a bit thick or corrosive or you requires low filling amount, please e-mail us and inform us your needs.We have other model that is suitable for you. (For viscous liquid, corrosive liquid, low filling amount, 3L/5L/6L..., 3, 4, 5...12 heads machines are all customizable.)
